AMAT Applied Materials 0100-00423输入输出模块

1.产 品 资 料 介 绍：

核心规格

功能与优势

• 混合通道集成：一块模块满足数字量与模拟量控制需求，节省插槽与布线。
• 高分辨率模拟量：支持高精度过程参数采集与控制，如温度、压力、流量。
• 稳定可靠：光电隔离与高隔离电压设计，有效抑制电磁干扰，保障信号质量。
• 宽温工作：适应工业现场高温、高湿等恶劣环境。
• 标准安装：适配多数工业控制柜，便于维护与扩展。

安装与维护要点

1. 安装
   • 模块插入 19 英寸机箱插槽，紧固螺丝。
   • 按端子标识连接 DI/DO、AI/AO 及 24 VDC 电源，确保极性正确。
2. 调试
   • 检查供电正常后，通过设备控制软件配置通道参数。
   • 测试 DI 输入信号、DO 输出动作及 AI/AO 精度，确保与设定值一致。
3. 维护
   • 每 6–12 个月检查端子紧固度，防止松动导致信号异常。
   • 清洁模块散热片，防止灰尘堆积影响散热。
   • 记录校准与更换记录，便于追溯。

AMAT Applied Materials 0100-00423输入输出模块 英文资料：

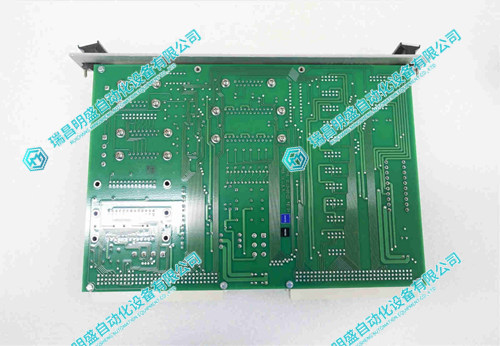

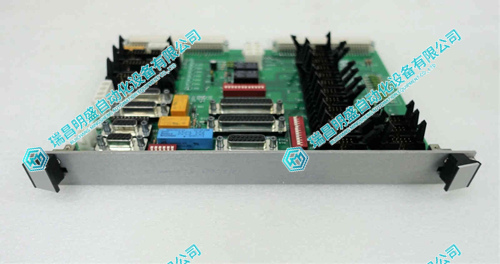

e777乐彩线路检测AMAT 0100-00423 is a multifunctional input/output module designed by Applied Materials for semiconductor equipment control systems. It integrates digital and analog channels, supports high-speed data acquisition and precise control, and is widely used in platforms such as Centura and Endura.

e777乐彩线路检测Core specifications

e777乐彩线路检测Project specification remarks

e777乐彩线路检测Type mixed I/O module (digital+analog) industrial design

Digital quantity 6 DI+4 DO optoelectronic isolation, anti-interference

Analog quantity 2 AI+2 AO voltage/current optional

Resolution AI 12 bits+sign bit; AO voltage 14 bit, current 13 bit high-precision acquisition/output

e777乐彩线路检测Input range AI: ± 10 V, ± 5 V, ± 2.5 V, 0-20 mA, 4-20 mA Compatible with sensors and transmitters

e777乐彩线路检测Output range AO: ± 10 V, 0-20 mA, 4-20 mA, can drive regulating valves, proportional valves

e777乐彩线路检测Isolation voltage between digital/analog/ground 500 VAC to prevent signal crosstalk

Suitable for a wide temperature environment with a working temperature range of -20 to+80 ℃

Size 318 × 208 × 76 mm standard 19 inch chassis installation

e777乐彩线路检测Certified CE, UL, RoHS compliant with international safety standards

e777乐彩线路检测Features and advantages

Mixed channel integration: One module meets the requirements of digital and analog control, saving slots and wiring.

e777乐彩线路检测High resolution analog: supports high-precision process parameter acquisition and control, such as temperature, pressure, and flow rate.

Stable and reliable: Designed with optoelectronic isolation and high isolation voltage, effectively suppressing electromagnetic interference and ensuring signal quality.

Wide temperature work: Suitable for harsh environments such as high temperature and high humidity in industrial sites.

e777乐彩线路检测Standard installation: Suitable for most industrial control cabinets, easy to maintain and expand.

Key points for installation and maintenance

install

ｉｎｓｅｒｔ the module into the 19 inch chassis slot and tighten the screws.

Connect DI/DO, AI/AO, and 24 VDC power supplies according to the terminal markings to ensure correct polarity.

debug

e777乐彩线路检测After checking that the power supply is normal, configure the channel parameters through the device control software.

Test the DI input signal, DO output action, and AI/AO accuracy to ensure consistency with the set values.

maintenance

Check the tightness of the terminals every 6-12 months to prevent signal abnormalities caused by looseness.

Clean the module heat sink to prevent dust accumulation from affecting heat dissipation.

e777乐彩线路检测Record calibration and replacement records for easy traceability.
