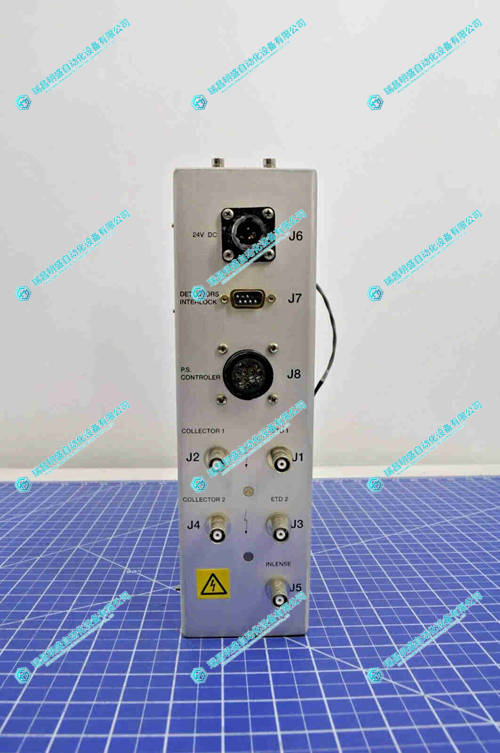

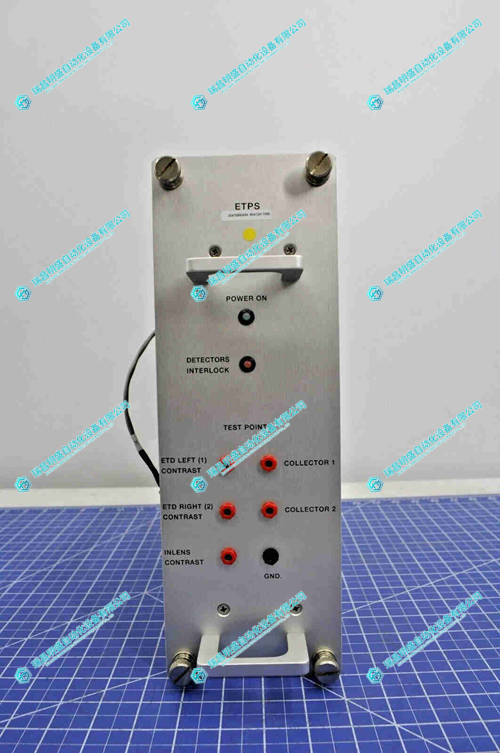

AMAT Applied Materials 50412411000控制器模块
1.产 品 资 料 介 绍：
类别 | 规格 |
控制能力 | 支持 16 路模拟 I/O、32 路数字 I/O，可扩展至 64 路数字 I/O |
运算性能 | 64 位多核处理器，指令响应时间≤0.5ms，支持多任务并行处理 |
协议兼容 | 支持 Profinet、EtherNet/IP、Modbus-TCP/RTU，通讯速率≤1Gbps |
环境适配 | -10-70℃、湿度＜85% 无冷凝、抗 EMI 干扰（EN 61000-6-2） |
安全特性 | SIL 3 认证，集成过载、短路、过温保护，符合 SEMI S2/S8 标准 |
兼容性 | 兼容 AMAT 0010-13143 射频模块、0100-66025 控制模块、0100-02839 机架组件 |
- 工艺全流程控制：接收分析输入板（0100-11000）的工艺数据，下发指令至射频模块调节功率、气缸组件（3020-00121）控制动作，实现晶圆上载 - 工艺执行 - 卸载的全自动流程。
- 多子系统协同：联动射频匹配组件（0041-78374）与模拟输入模块（0100-09063），动态补偿射频反射功率，同步调节反应腔温度、压力，保障等离子体稳定性。
- 安全与故障管理：整合射频互锁模块（0100-35565）、气体泄漏检测器信号，危险场景下 0.03s 内切断关键动力源，同时记录故障数据用于溯源与预防性维护。
AMAT Applied Materials 50412411000控制器模块 英文资料：
e777乐彩线路检测1、 Core positioning
AMAT 50412411000 is the "global control center" for semiconductor equipment, integrating multi protocol communication, process logic operations, and safety interlock management functions. It is responsible for integrating signals from RF modules (such as 0010-13143), sensors, and actuators to achieve sequential control of process flow and real-time monitoring of equipment status. It is suitable for Class 100 clean environments and high-frequency electromagnetic interference scenarios, ensuring efficient and stable operation of complex processes such as etching and deposition.
2、 Key parameters
Category
Specifications
Control ability
Supports 16 analog I/O, 32 digital I/O, expandable to 64 digital I/O
e777乐彩线路检测Computational performance
64 bit multi-core processor, instruction response time ≤ 0.5ms, supports multitasking parallel processing
Protocol compatibility
Supports Profinet, EtherNet/IP, Modbus TCP/RTU, communication speed ≤ 1Gbps
Environmental adaptation
-10-70 ℃, humidity<85%, no condensation, anti EMI interference (EN 61000-6-2)
e777乐彩线路检测Security features
SIL 3 certification, integrated overload, short circuit, and over temperature protection, compliant with SEMI S2/S8 standards
e777乐彩线路检测Compatibility
e777乐彩线路检测Compatible with AMAT 0010-13143 RF module, 0100-66025 control module, 0100-02839 rack components
e777乐彩线路检测3、 Core applications
e777乐彩线路检测Process full process control: Receive and analyze process data from the input board (0100-11000), issue instructions to the RF module to adjust power, and control the actions of the cylinder components (3020-00121), achieving a fully automated process of wafer loading, process execution, and unloading.
Multi subsystem collaboration: linking the RF matching component (0041-78374) with the analog input module (0100-09063), dynamically compensating for RF reflection power, synchronously adjusting reaction chamber temperature and pressure, and ensuring plasma stability.
Safety and Fault Management: Integrate RF interlock module (0100-35565) and gas leak detector signals, cut off critical power sources within 0.03 seconds in hazardous scenarios, and record fault data for traceability and preventive maintenance.
AMAT Applied Materials 50412411000控制器模块 e777乐彩线路检测
产品视频
