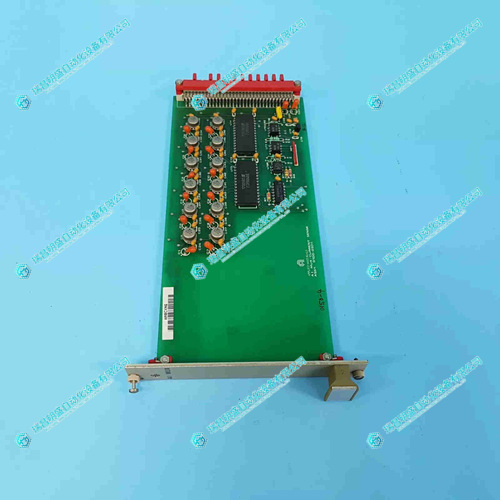

AMAT Applied Materials 0100-09011印刷电路板
1.产 品 资 料 介 绍：
类别 | 规格 |
基板材质 | 玻璃纤维增强环氧树脂（FR-4），Tg≥155℃ |
布线层数 | 6 层，线宽 / 线距≥3mil/3mil，阻抗控制 ±10%（适配 50Ω/75Ω 信号） |
接口特性 | 集成 4 路模拟信号接口（适配 0-10V/4-20mA）、6 路数字 I/O 接口、2 路 RS-485 通讯接口 |
环境适配 | -10-65℃、湿度＜85% 无冷凝、抗 EMI 干扰（EN 61000-6-2） |
防护特性 | 表面涂覆三防漆（防潮、防盐雾、防霉菌），焊点抗氧化处理 |
兼容性 | 兼容 AMAT 0100-09063 模拟输入模块、0100-66025 控制模块、0100-02839 机架组件 |
- 信号中转适配：连接 0100-09063 模拟输入模块与 0100-66025 控制模块，实现模拟信号到数字信号的过渡传输，解决不同模块接口不兼容问题。
- 局部信号处理：对温度、压力传感器的原始模拟信号进行初步滤波、放大，减少长距离传输的信号损耗，提升后续采集精度。
- 子系统集成：整合气缸（3020-00121）位置反馈、电磁阀控制信号，形成局部控制单元，辅助主控制模块减轻运算负荷。
AMAT Applied Materials 0100-09011印刷电路板 英文资料：
e777乐彩线路检测1、 Core positioning
AMAT 0100-09011 is the "signal integration and functional carrier" of semiconductor equipment electronic control systems, responsible for signal transfer, preliminary processing, and interface adaptation functions of analog input modules (such as 0100-09063), sensors and control modules (0100-66025). It adopts anti-interference wiring and high reliability packaging, adapts to Class 100 clean environments and high-frequency signal transmission scenarios, and ensures stable flow of equipment electronic control signals.
e777乐彩线路检测2、 Key parameters
Category
Specifications
Substrate material
Glass fiber reinforced epoxy resin (FR-4), Tg ≥ 155 ℃
Number of wiring layers
6 layers, line width/spacing ≥ 3mil/3mil, impedance control ± 10% (suitable for 50 Ω/75 Ω signals)
Interface characteristics
e777乐彩线路检测Integrate 4 analog signal interfaces (compatible with 0-10V/4-20mA), 6 digital I/O interfaces, and 2 RS-485 communication interfaces
Environmental adaptation
e777乐彩线路检测-10-65 ℃, humidity<85%, no condensation, anti EMI interference (EN 61000-6-2)
e777乐彩线路检测Protective characteristics
e777乐彩线路检测Surface coating with three proof paint (moisture-proof, salt spray proof, mold proof), solder joints treated with anti-oxidation
Compatibility
Compatible with AMAT 0100-09063 analog input module, 0100-66025 control module, 0100-02839 rack components
e777乐彩线路检测3、 Core applications
Signal transfer adaptation: Connect the 0100-09063 analog input module with the 0100-66025 control module to achieve the transition transmission of analog signals to digital signals, and solve the problem of incompatible interfaces between different modules.
Local signal processing: Preliminary filtering and amplification of raw analog signals from temperature and pressure sensors to reduce signal loss during long-distance transmission and improve subsequent acquisition accuracy.
Subsystem integration: Integrate cylinder (3020-00121) position feedback and solenoid valve control signals to form a local control unit, assisting the main control module in reducing computational load.
AMAT Applied Materials 0100-09011印刷电路板 e777乐彩线路检测
