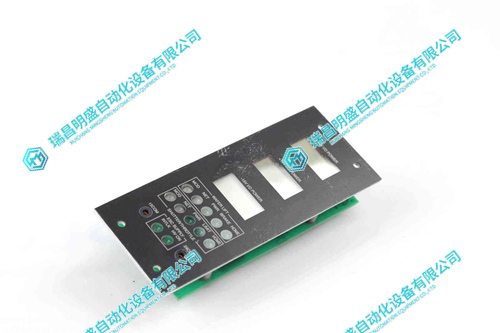

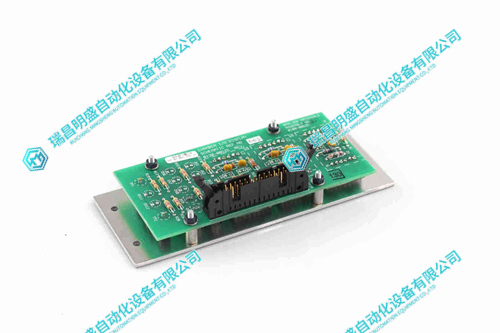

AMAT Applied Materials 0130-00525显示I/O模块

1.产 品 资 料 介 绍：

核心规格

功能与优势

• 一体化设计：同时处理显示信号与 I/O 控制，减少布线与接口模块数量。
• 高分辨率显示：支持 800×600 以上分辨率，画面清晰稳定。
• 多通道 I/O：16 入 16 出，满足面板操作与状态指示需求。
• 高可靠性：采用光电隔离与过压保护，抗干扰能力强。
• 易于集成：支持多种通信协议，方便接入现有控制系统。

应用场景

• 半导体设备操作面板
• 真空系统状态监控
• 薄膜沉积、刻蚀、离子注入设备的人机交互界面

更换与注意事项

1. 确认版本：核对物料编码 0130‑00525 与版本号，确保电气兼容。
2. 防静电：佩戴防静电手环，在防静电台垫上操作。
3. 安装定位：按机箱定位孔与接插件方向安装，避免错位。
4. 接线连接：按端子标识接入触摸屏、按钮、指示灯及电源，注意极性与屏蔽。
5. 测试：安装后进行电源、信号完整性与功能测试，确保无短路或信号异常。

AMAT Applied Materials AS01391-21-1印刷电路板 英文资料：

e777乐彩线路检测The AMAT 0130-00525 Display I/O Module is a high-performance input/output component designed by Applied Materials specifically for semiconductor device operation interfaces. It is used to connect display and control devices such as touch screens, indicator lights, buttons, etc. It is commonly used in control panel systems on platforms such as Centura, Endura, P5000, etc.

Core specifications

e777乐彩线路检测Project specifications/characteristics remarks

Type display/control I/O interface PCB integrates input acquisition and output driver

Input channel 16 digital inputs can be expanded to 32 channels

Output channel 16 digital quantity output part channels can be equipped with relays

Input signal 5-24 VDC contact/level compatible with multiple buttons and sensors

Output signal 5-30 VDC/500 mA (transistor), direct drive indicator light, small relay

e777乐彩线路检测Parallel RGB/TTL or LVDS display interface supports 3.5 "~10.4" touch screen

Communication interfaces RS-485, SPI, and I ² C are convenient for interfacing with the main controller

e777乐彩线路检测High precision measurement with a resolution of 0.1 ℃

Working temperature -20~+60 ℃, suitable for industrial grade environment

Installation method: Standard 35mm guide rail or panel fixed for easy maintenance and replacement

Certified CE, UL, RoHS compliant with international safety standards

e777乐彩线路检测Features and advantages

e777乐彩线路检测Integrated design: Simultaneously processing display signals and I/O control, reducing the number of wiring and interface modules.

e777乐彩线路检测High resolution display: Supports resolutions above 800 × 600, with clear and stable images.

e777乐彩线路检测Multi channel I/O: 16 inputs and 16 outputs, meeting the requirements of panel operation and status indication.

High reliability: adopting photoelectric isolation and overvoltage protection, with strong anti-interference ability.

Easy to integrate: Supports multiple communication protocols, making it convenient to access existing control systems.

e777乐彩线路检测Application scenarios

Semiconductor equipment operation panel

e777乐彩线路检测Vacuum system status monitoring

e777乐彩线路检测Human computer interaction interface for thin film deposition, etching, and ion implantation equipment

Replacement and precautions

e777乐彩线路检测Confirm version: Verify the material code 0130-00525 with the version number to ensure electrical compatibility.

e777乐彩线路检测Anti static: Wear an anti-static wristband and and operate on the anti-static mat.

Installation positioning: Install according to the chassis positioning hole and connector direction to avoid misalignment.

e777乐彩线路检测Wiring connection: Connect the touch screen, buttons, indicator lights, and power supply according to the terminal identification, paying attention to polarity and shielding.

e777乐彩线路检测Testing: Conduct power, signal integrity, and functional testing after installation to ensure no short circuits or signal abnormalities.

AMAT Applied Materials AS01391-21-1印刷电路板 e777乐彩线路检测
