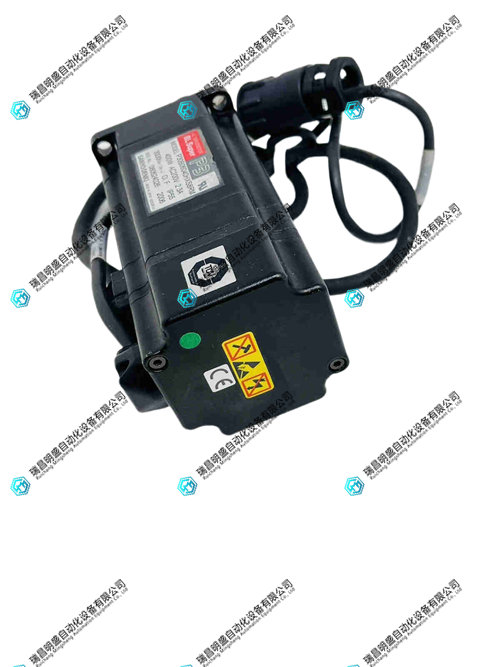

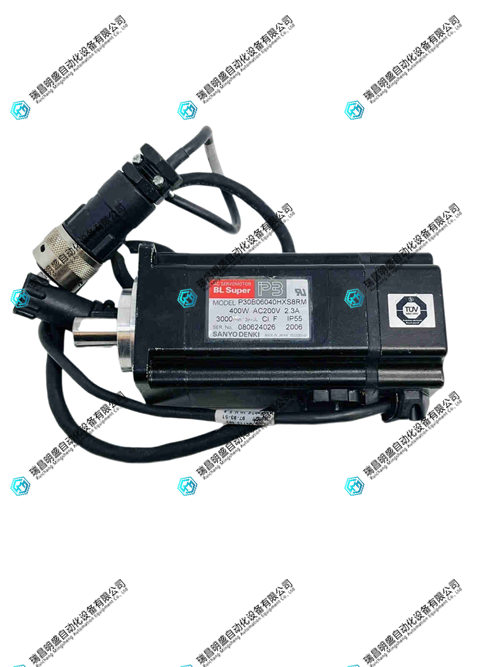

SANYO DENKI P30B06040HXS8R 伺服电机
1.产 品 资 料 介 绍：
- SANYO DENKI P30B06040HXS8R 是小功率交流电伺服电机，额定功率 0.4kW、额定转速 3000rpm，经扭矩公式 T=9550P/n 计算，输出扭矩约 1.27N・m，主打高精度与低惯量，适合半导体晶圆搬运臂、微型精密装配机等对动力与精度均有严苛要求的轻载场景。
- 8-15 台该电机可通过 EtherCAT 工业总线实现高速协同控制，驱动多轴精密执行部件，比如电子芯片封装线的引脚折弯机构，能同步各轴动作时序，结合其低惯量特性，确保折弯尺寸公差控制在 ±0.01mm 内，提升封装合格率至 99.8% 以上。
- 适配三相 200V-230V 工业标准电源，输入电压波动允许范围 ±10%（180V-253V），可适应电子车间供电电压的轻微波动，无需额外配置稳压设备，降低精密生产线的电路部署成本。
- 采用小尺寸法兰设计，机身长度仅约 150mm，可嵌入紧凑型设备内部，配合标准轴径设计，能直接适配轻量化弹性联轴器，无需对传动系统进行定制改造，适配精密设备的空间布局需求。
- 能与同品牌小型伺服驱动器（如 60BA 系列低功率型号）无缝兼容，支持 “电机参数自动读取” 功能，通电后可快速识别电机型号并加载匹配参数，避免人工设置误差，调试时间缩短至 20 分钟以内。
- 内置 2500 线高精度增量式编码器，配合驱动器的高频采样技术，可实时反馈电机运行位置与转速，位置控制重复精度达 ±0.003mm，满足半导体行业对微米级定位的核心需求。
- 优化的转子低惯量设计降低了转动惯性，电机启停响应速度快，从静止到额定转速的启动时间仅需 0.15 秒，适合芯片测试设备中频繁启停的间歇式工作场景，减少工序衔接耗时。
- 机身防护等级达 IP54，外壳接缝处采用耐油密封胶条，输出轴端配备双唇密封圈，能有效阻挡洁净车间内的微量粉尘与冷凝水，同时避免润滑油泄漏污染工况，适配半导体洁净室环境。
- 定子绕组选用 H 级耐高温漆包线，配合内置温度传感器的过热保护功能，当绕组温度超过 155℃时自动切断电源，避免因长时间高负载运行导致电机烧毁，延长使用寿命至 15000 小时以上。
- 整体在高精度控制、低惯量响应与环境适应性上表现突出，无论是单台用于微型精密设备，还是 10 台以上批量部署于半导体、电子行业的自动化生产线，都能为伺服系统提供稳定可靠的动力支持。
SANYO DENKI P30B06040HXS8R 伺服电机 英文资料：
e777乐彩线路检测SANYO DENKI P30B0604HXS8R is a low-power AC servo motor with a rated power of 0.4kW and a rated speed of 3000rpm. Calculated using the torque formula T=9550P/n, the output torque is approximately 1.27N · m. It is designed for high precision and low inertia, and is suitable for light load scenarios such as semiconductor wafer handling arms and micro precision assembly machines that require strict power and precision.
e777乐彩线路检测8-15 units of this motor can achieve high-speed collaborative control through EtherCAT industrial bus, driving multi axis precision execution components, such as the pin bending mechanism of electronic chip packaging lines, which can synchronize the timing of each axis action. Combined with its low inertia characteristics, it ensures that the bending size tolerance is controlled within ± 0.01mm, improving the packaging qualification rate to over 99.8%.
Suitable for three-phase 200V-230V industrial standard power supply, with an allowable range of input voltage fluctuation of ± 10% (180V-253V), it can adapt to slight fluctuations in power supply voltage in electronic workshops without the need for additional voltage stabilization equipment, reducing the cost of circuit deployment in precision production lines.
Adopting a small-sized flange design, the body length is only about 150mm, which can be embedded inside compact equipment. With a standard shaft diameter design, it can directly adapt to lightweight elastic couplings without the need for customized modifications to the transmission system, meeting the spatial layout requirements of precision equipment.
It is seamlessly compatible with small servo drives of the same brand (such as 60BA series low-power models), supports the "automatic reading of motor parameters" function, and can quickly identify the motor model and load matching parameters after power on, avoiding manual setting errors and shortening debugging time to less than 20 minutes.
e777乐彩线路检测Built in 2500 line high-precision incremental encoder, combined with high-frequency sampling technology of the driver, can provide real-time feedback on the motor's operating position and speed, with a position control repeatability of ± 0.003mm, meeting the core requirements of the semiconductor industry for micrometer level positioning.
The optimized low inertia design of the rotor reduces rotational inertia, and the motor has a fast start stop response speed. The start-up time from static to rated speed only takes 0.15 seconds, which is suitable for intermittent work scenarios with frequent start stop in chip testing equipment, reducing the time required for process connection.
e777乐彩线路检测The body protection level reaches IP54, and oil resistant sealing strips are used at the joints of the shell. The output shaft end is equipped with a double lip sealing ring, which can effectively block trace dust and condensed water in the clean workshop, while avoiding lubricating oil leakage and pollution conditions, and is suitable for semiconductor clean room environment.
e777乐彩线路检测The stator winding is made of H-grade high-temperature resistant enameled wire, combined with the overheat protection function of the built-in temperature sensor. When the winding temperature exceeds 155 ℃, the power supply will be automatically cut off to avoid motor burnout caused by long-term high load operation and extend the service life to more than 15000 hours.
The overall performance is outstanding in high-precision control, low inertia response, and environmental adaptability. Whether it is a single unit used for micro precision equipment or more than 10 units deployed in batches on automated production lines in the semiconductor and electronics industries, it can provide stable and reliable power support for servo systems.
SANYO DENKI P30B06040HXS8R 伺服电机 e777乐彩线路检测
