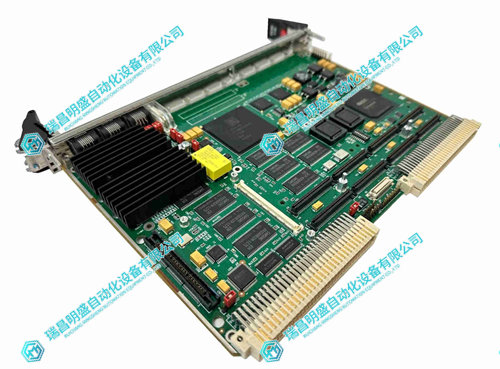

Motorola MVME5110-2263单板计算机

1.产 品 资 料 介 绍：

技术参数

功能亮点

• 高性能架构：PowerPlus II 集成内存与 PCI 控制器，读带宽 582 MB/s、写 640 MB/s，PCI 吞吐 264 MB/s。
• 模块化扩展：通过 PMC/PCI 夹层可灵活扩展数字 I/O、模拟量、通信与存储。
• 高可靠性：ECC 内存、硬件看门狗及工业级抗干扰设计，支持长时间稳定运行。
• 多系统支持：提供成熟 BSP，缩短开发周期，适配主流实时与通用操作系统。

Motorola MVME5110-2263单板计算机 英文资料：

The Motorola MVME5110-2263 is a high-performance single board computer (SBC) based on VMEbus, belonging to the MVME5100 series. It integrates a PowerPC processor, large capacity memory, and rich I/O, and is designed for key tasks such as industrial automation, embedded control, communication, and scientific research testing.

Technical Specifications

e777乐彩线路检测Project specification remarks

Processor PowerPC MPC7410 500 MHz (some versions 400 MHz) with 32 KB/32 KB L1 cache, supports AltiVec

e777乐彩线路检测512 MB ECC SDRAM (onboard) expandable to 1.5 GB (via RAM500 mezzanine)

Storage of 17 MB flash memory (1 MB PLCC/LCC+16 MB patch) for booting and firmware

NVRAM 32 KB (4 KB user available)+replaceable real-time clock battery

Bus interface VME64/VME64x, 32/64 bit data transmission supports 100MHz front-end bus

I/O interface 2 × 16550 compatible with serial port (RS-232/422/485 optional)

2 × 10/100BaseTX Ethernet

Parallel port (requires PMC/backplane) without onboard USB

e777乐彩线路检测Expand 2 × 32/64 bit PMC slots

64 bit PCI mezzanine (expandable up to 4xPMC) supports front-end and back-end I/O

Control function bus arbitration DMA、 interrupt management

Timer and watchdog support linked list DMA and multiprocessor interrupts

e777乐彩线路检测Operating systems such as VxWorks, Linux, pSOS, etc. provide BSP and firmware monitors

Environmental industrial design commercial grade 0-55 ℃ (some models support wide temperature range)

Key Features

High performance architecture: PowerPlus II integrates memory and PCI controller, with a read bandwidth of 582 MB/s, write speed of 640 MB/s, and PCI throughput of 264 MB/s.

Modular Expansion: Digital I/O, analog, communication, and storage can be flexibly expanded through PMC/PCI mezzanine.

High reliability: ECC memory, hardware watchdog, and industrial grade anti-interference design, supporting long-term stable operation.

e777乐彩线路检测Multi system support: Provides mature BSP, shortens development cycle, and adapts to mainstream real-time and general-purpose operating systems.

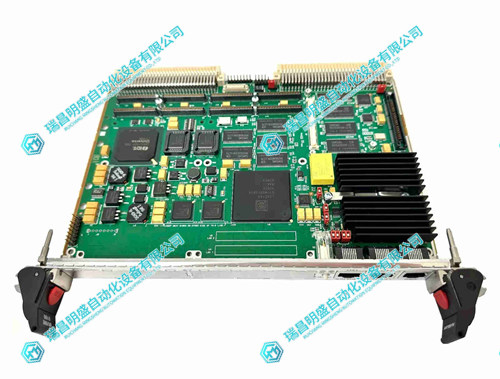

 Motorola MVME5110-2263单板计算机 产      品      展      示
