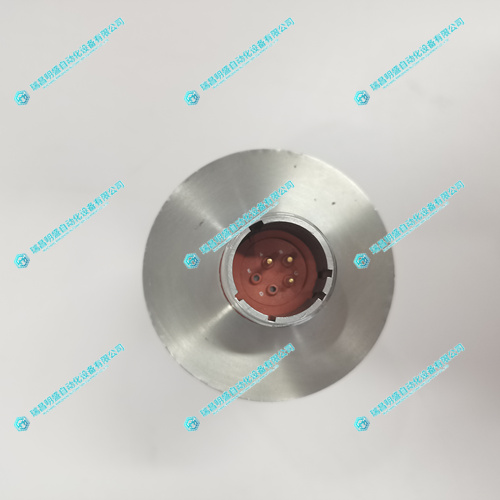

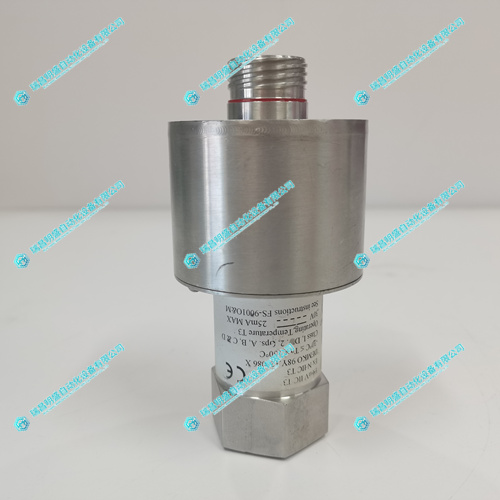

GE RS-FS-9001 火焰探测器

1.产 品 资 料 介 绍：

一、产品概述

RS-FS-9001 是一款用于检测燃烧状态的高性能火焰探测器，可识别多种火焰类型，包括燃气、燃油或其他可燃介质燃烧产生的火焰信号。其设计旨在在极端环境下也能保持高度灵敏、稳定和抗干扰的火焰识别能力。

二、核心功能

1. 火焰信号检测

   • 检测火焰中红外（IR）或紫外（UV）波段的辐射信号

   • 支持单波段或多波段探测技术，以增强识别准确性

2. 燃烧确认与监测

   • 用于燃烧器点火确认、燃烧持续状态监控

   • e777乐彩线路检测可输出开关量或模拟量信号供上位系统使用

3. 自诊断功能

   • 具备光学通道污染监测、窗口结垢检测等功能

   • e777乐彩线路检测系统自检反馈异常状态至控制系统

4. 抗干扰设计

   • 可有效抑制焊接弧光、阳光、照明灯等误报警

   • 内部算法优化背景噪声屏蔽

三、技术参数（典型值，具体以数据手册为准）

英文资料：

e777乐彩线路检测1、 Product Overview

RS-FS-90001 is a high-performance flame detector used to detect combustion status, which can recognize multiple types of flames, including flame signals generated by the combustion of gas, fuel, or other combustible media. Its design aims to maintain highly sensitive, stable, and anti-interference flame recognition capabilities even in extreme environments.

2、 Core functions

Flame signal detection

Detecting radiation signals in the infrared (IR) or ultraviolet (UV) bands of flames

Support single band or multi band detection technology to enhance recognition accuracy

Combustion confirmation and monitoring

e777乐彩线路检测Used for burner ignition confirmation and continuous combustion status monitoring

Can output switch or analog signals for use by the upper system

self-diagnosis

e777乐彩线路检测Equipped with functions such as optical channel pollution monitoring and window scaling detection

System self-test feedback abnormal status to control system

anti-interference design

e777乐彩线路检测Can effectively suppress false alarms caused by welding arc light, sunlight, lighting fixtures, etc

Internal algorithm optimization for background noise shielding

e777乐彩线路检测3、 Technical parameters (typical values, please refer to the data manual for details)

e777乐彩线路检测Example of project parameters

Detection methods include ultraviolet, infrared, or a combination of ultraviolet and infrared detection

e777乐彩线路检测Response time less than 100ms

e777乐彩线路检测Power requirement 24V DC (common industrial power supply)

Output signal relay contacts, 4-20mA analog, Modbus (some models)

Operating environment temperature: -20 ° C to+70 ° C

e777乐彩线路检测Universal flange or threaded installation interface, compatible with multiple installation platforms

Protection level IP65 or higher (suitable for outdoor or harsh environments)

2.产      品      展      示
