GE IS200AEADH4A输入终端板

1.产 品 资 料 介 绍：

中文资料：

GE IS200AEADH4A 输入终端板 是通用电气（GE）Mark VI 或 Mark VIe 控制系统中的一款关键 I/O 模块配套的输入终端板（Input Terminal Board），广泛应用于燃气轮机、蒸汽轮机及其他工业自动化控制系统中，用于模拟信号的接入和调理。

一、基本信息

二、核心功能

1. 模拟输入信号接入

   • e777乐彩线路检测提供通道接线端子，用于接收外部传感器、变送器等设备的模拟输入信号（如电压、电流等）。

2. 信号调理与分配

   • 包含隔离、滤波、电压分压、短路保护等功能，以确保信号稳定可靠地传输至控制模块。

3. 与 I/O 模块配合使用

   • e777乐彩线路检测通常与 IS200AEAAH1A 或类似模拟采集模块配合使用，通过连接线缆（例如 JT1、JT2 接头）实现信号传输。

4. 高可靠性设计

   • 工业级设计，适用于苛刻环境；具备抗干扰能力和过压保护。

三、技术参数（典型值）

英文资料：

e777乐彩线路检测The GE IS200AEADH4A input terminal board is a key I/O module matching input terminal board in the General Electric (GE) Mark VI or Mark VIe control system. It is widely used in gas turbines, steam turbines, and other industrial automation control systems for analog signal access and conditioning.

e777乐彩线路检测1、 Basic Information

Project Content

Product model IS200AEADH4A

Name: AEAD Input Terminal Board (Analog/Encoder/Attenuator/Distribution)

e777乐彩线路检测Manufacturer GE (General Electric)

e777乐彩线路检测System Platform Mark VI/Mark VIe Control System

e777乐彩线路检测Function type: Terminal Board for Analog Input

2、 Core functions

Analog input signal access

Provide channel wiring terminals for receiving analog input signals (such as voltage, current, etc.) from external sensors, transmitters, and other devices.

Signal conditioning and distribution

e777乐彩线路检测It includes functions such as isolation, filtering, voltage division, and short-circuit protection to ensure stable and reliable transmission of signals to the control module.

e777乐彩线路检测Used in conjunction with I/O modules

Usually used in conjunction with IS200AEAAH1A or similar analog acquisition modules, signal transmission is achieved through connecting cables (such as JT1, JT2 connectors).

High reliability design

e777乐彩线路检测Industrial grade design, suitable for harsh environments; Capable of anti-interference and overvoltage protection.

3、 Technical parameters (typical values)

Parameter Description

Analog input signal types: 0-5V, ± 5V, 0-20mA, 4-20mA (depending on system configuration)

The number of channels generally supports 10-16 analog inputs

e777乐彩线路检测Terminal type: Plug in terminal block with serial number

e777乐彩线路检测Isolation between electrical isolation input/control signals

The connection method is to connect the motherboard through a cable (usually a signal harness or ribbon cable)

e777乐彩线路检测Installation method: DIN rail or panel fixed screw installation

Applicable ambient temperature -30 ° C to+65 ° C (according to GE industrial standards)

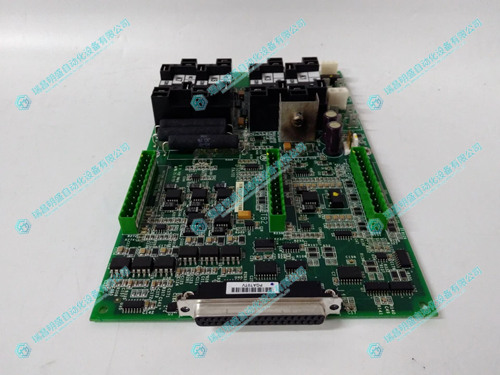

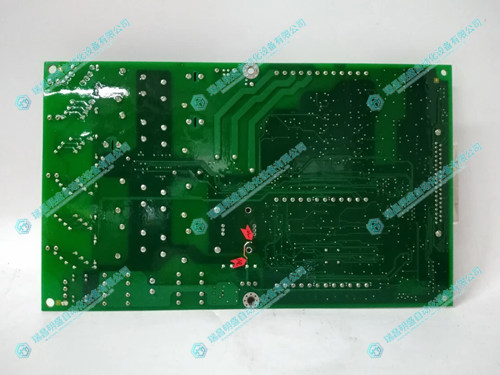

2.产      品      展      示
