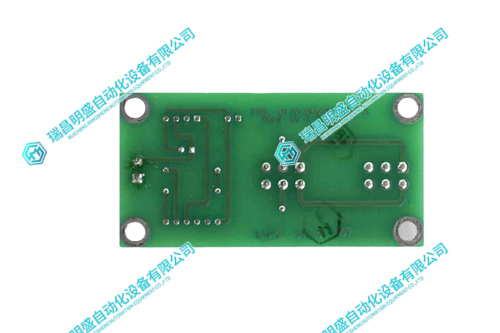

AMAT Applied Materials 0110-09245步骤驱动器模块

1.产 品 资 料 介 绍：

核心技术参数

功能特点

• 高精度细分：支持最高 1/256 细分，实现亚微米级定位，运行平滑无共振。
• 多模式控制：兼容脉冲 + 方向与正反转脉冲输入，适配不同上位控制器。
• 宽电流范围：0.5~3.0A 可设，适配不同扭矩需求的电机。
• 快速响应：200kHz 脉冲频率，满足高速定位与频繁启停工况。
• 可靠保护：内置过热、过流、欠压保护，确保长期稳定运行。
• 通信扩展：可选 RS-485 接口，便于多模块组网与远程监控。

典型应用

• 半导体光刻、刻蚀、CVD 设备的晶圆台定位
• 平板显示制造中的精密涂布、切割台控制
• 精密数控机床、自动化装配线
• 光学扫描、电子测试设备的精确定位

AMAT Applied Materials 0110-09245步骤驱动器模块 英文资料：

AMAT Applied Materials 0110-09245 is a high-resolution, high-precision single channel stepper motor driver module that uses advanced subdivision technology and micro step control to meet the strict requirements of semiconductor manufacturing, flat panel display, and precision automation equipment for position accuracy and motion stability.

Core technical parameters

Project parameters/characteristics

Drive type: two-phase or four phase hybrid stepper motor

Subdivision settings 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256 are optional

e777乐彩线路检测Output current 0.5~3.0A (peak), adjustable in 8 levels

e777乐彩线路检测Supply voltage 24~48VDC (typical 24VDC)

e777乐彩线路检测Control signal pulse+direction (Dir)/forward/reverse rotation pulse (CW/CCW), compatible with 5-24V

Maximum pulse frequency 200kHz

Protection functions include overcurrent, over temperature, and under voltage protection, automatic shutdown, and alarm

Communication interface RS-485 (Modbus RTU) optional

e777乐彩线路检测Installation method: Standard half rack (1/2 rack) rail or panel installation

e777乐彩线路检测Size 100 × 160 × 40mm (approximately)

Features

e777乐彩线路检测High precision subdivision: supports up to 1/256 subdivision, achieves sub micron level positioning, and runs smoothly without resonance.

Multi mode control: compatible with pulse+direction and forward/reverse pulse input, suitable for different upper level controllers.

e777乐彩线路检测Wide current range: 0.5~3.0A can be set, suitable for motors with different torque requirements.

Fast response: 200kHz pulse frequency, meeting high-speed positioning and frequent start stop conditions.

Reliable protection: Built in overheating, overcurrent, and undervoltage protection to ensure long-term stable operation.

e777乐彩线路检测Communication Expansion: Optional RS-485 interface for easy multi module networking and remote monitoring.

e777乐彩线路检测Typical Applications

e777乐彩线路检测Crystal cone positioning for semiconductor lithography, etching, and CVD equipment

e777乐彩线路检测Precision coating and cutting table control in flat panel display manufacturing

Precision CNC machine tools, automated assembly lines

Accurate positioning of optical scanning and electronic testing equipment

AMAT Applied Materials  0110-09245步骤驱动器模块 e777乐彩线路检测
