GE   193X531ACG01诊断板

1.产 品 资 料 介 绍：

中文资料：

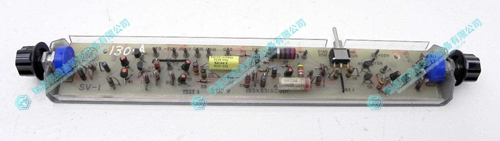

产品名称：诊断板

产品型号：193X531ACG01

制造商：General Electric (GE)

所属系列：193X 系列工业控制模块

产品简介

193X531ACG01 是 GE 193X 控制系统中的一块 诊断功能电路板，主要用于系统运行状态监测、故障检测与辅助维护。该模块设计用于配合 GE 驱动系统，为技术人员提供信号分析、状态显示及维护支持，提升系统运行的可视化和可维护性。

核心功能

• 实时采集并显示系统关键运行参数

• e777乐彩线路检测提供诊断信号测试点和监控接口

• e777乐彩线路检测支持系统运行状态 LED 指示（如电源状态、故障状态）

• e777乐彩线路检测协助识别控制系统中的潜在故障或信号异常

• 与主控制板或其他功能模块协同工作，增强系统可靠性

技术参数（参考值）

典型应用场景

• e777乐彩线路检测GE 直流调速系统状态监控

• 工业电机控制系统诊断面板

• e777乐彩线路检测电气控制柜辅助调试工具

• 用于现场测试与维护的信号诊断支持模块

英文资料：

e777乐彩线路检测Product Name: Diagnostic Board

Product model: 193X531ACG01

manufacturer: General Electric (GE)

Series: 193X series industrial control module

Product Introduction

193X531ACG01 is a diagnostic circuit board in the GE 193X control system, mainly used for system operation status monitoring, fault detection, and auxiliary maintenance. This module is designed to complement the GE drive system, providing signal analysis, status display, and maintenance support for technicians, enhancing the visualization and maintainability of system operation.

Core functions

e777乐彩线路检测Real time collection and display of key operating parameters of the system

Provide diagnostic signal testing points and monitoring interfaces

e777乐彩线路检测Support system operation status LED indication (such as power status, fault status)

Assist in identifying potential faults or signal anomalies in the control system

Collaborate with the main control board or other functional modules to enhance system reliability

Technical parameters (reference values)

e777乐彩线路检测Parameter item description

Working voltage+15V DC/+24V DC

Functional circuit type logic judgment circuit+LED display unit

Display content status lights (Power, Run, Fault, etc.) or signal indicators

Interface type: slot connection+test point interface

e777乐彩线路检测Typical response time<5ms

e777乐彩线路检测Industrial environment, temperature range 0 ℃~70 ℃

e777乐彩线路检测Installation structure plug-in card, needs to be inserted into GE system host or dedicated motherboard

e777乐彩线路检测Typical application scenarios

GE DC speed regulation system status monitoring

Diagnostic panel for industrial motor control system

e777乐彩线路检测Electrical control cabinet auxiliary debugging tool

Signal diagnostic support module for on-site testing and maintenance
